300×350mm Automatic Lamination Machine Flute Laminator Machine Power Efficiency

Brand Name : FINTEECH

Model Number : YS -S108

Certification : CE

Place of Origin : CHINA

MOQ : 1set

Packaging Details : wooden case

Delivery Time : 20-30 days

Payment Terms : TT/LC

Supply Ability : 10 sets per day

Pre Stacker : Yes

Two Times Lamination : Yes

Auto Feeding : Yes

Engraving Roller : Yes

Loading : in factory

Name Card : Application

Contact Now

Instruction machine:

This machine is professional film lamination machine , it is high speed, high quality, high stability. Which can used for different printed paper material with high quality surface after printing processing, it can choose with according to the user's requirement with different configuration. Round knife slitting with standard, Hot knife slitting for optional, chain knife slitting for optional , it can slit different material, such as OPP,PET,PVC.

Technical Parameters:
Model YS-S108 series High Speed Film Lamination Machine
Size YS-S108-S | YS-S108-M | YS-S108-L
Max sheet size 1080*1000mm | 1080*1200mm | 1080*1450mm
Min sheet size 300*350mm | 300*350mm | 300*350mm
Paper thickness 80-500 g/㎡ | 80-500 g/㎡ | 80-500 g/㎡
Speed 20-100m/min | 20-100m/min | 20-100m/min
Machine total Power 60 KW | 60 KW | 60 KW
Machine size 11800*2370*3000mm | 11800*2370*3000mm | 12300*2370*3000mm
Weight 10000 KG | 10000 KG | 10500 KG
Standard configuration main function
  • 1. Round Knife
  • 2. Double power Removing roller
  • 3. Non-stop feeding system
  • 4. Automatic collecting final product
  • 5. Feeding with stacking automatically
  • 1. Round Knife
  • 2. Double power Removing roller
  • 3. Automatic paper correction
  • 4. Non-stop feeding system
  • 5. Automatic collecting final product
  • 6. Feeding with stacking automatically
  • 1. Round Knife
  • 2. Double power Removing roller
  • 3. Automatic paper correction
  • 4. Non-stop feeding system
  • 5. Automatic collecting final product
  • 6. Feeding with stacking automatically
Optional Chain knife cutting YS-SL108S | Chain knife cutting YS-SL108M | Chain knife cutting YS-SL108L
Optional Hot knife cutting YS-SR108R | Hot knife cutting YS-SR108M | Hot knife cutting YS-SR108L
Optional Full-page direct push type | Full-page direct push type | Full-page direct push type
Optional Brush powder removing | Brush powder removing | Bush powder removing

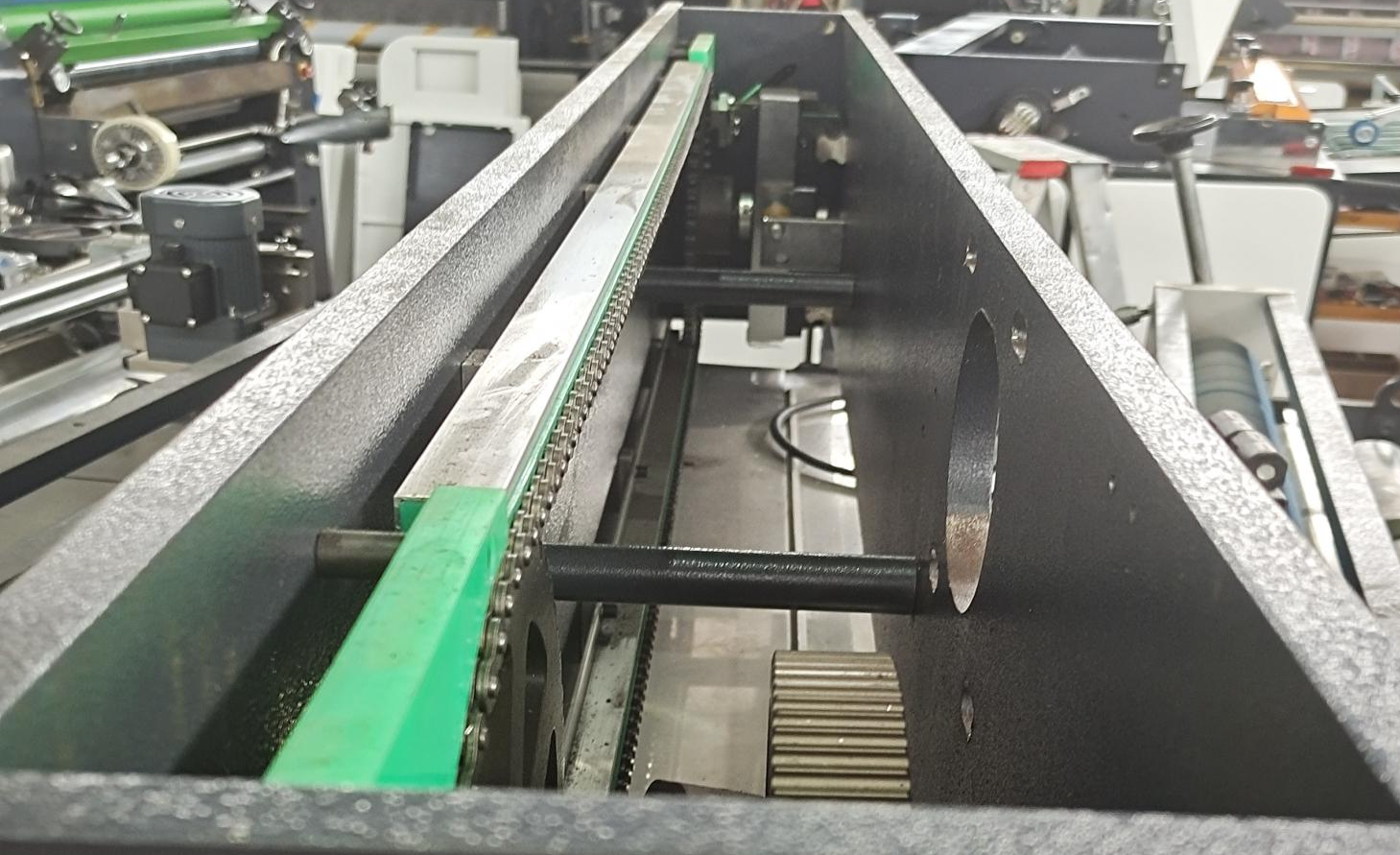

Machine More details:
300×350mm Automatic Lamination Machine Flute Laminator Machine Power Efficiency
Application:
300×350mm Automatic Lamination Machine Flute Laminator Machine Power Efficiency

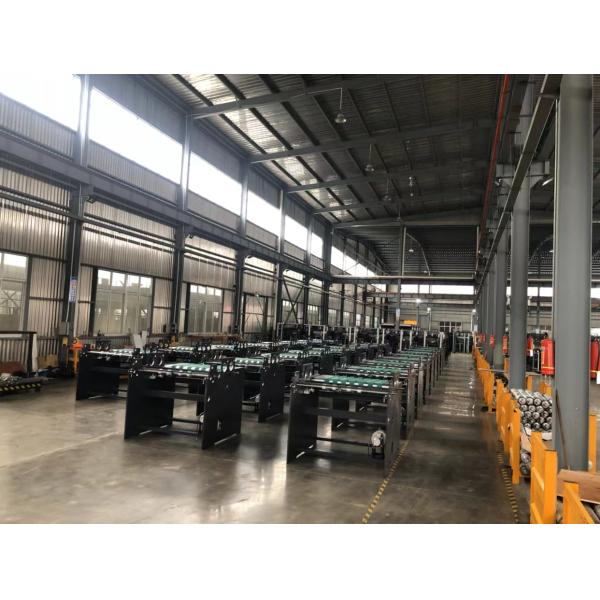

Workshop:
300×350mm Automatic Lamination Machine Flute Laminator Machine Power Efficiency
300×350mm Automatic Lamination Machine Flute Laminator Machine Power Efficiency
